Project Description

Rapid Fittings Push On Fittings is with much higher working pressure, and the big advantage of rapid fittings and push on fittings line is that the connected tube is allowed a 360° rotation on the fixing axle!
Ideal Bell uses Branded new materials, applied with Unique design and 100% test before delivery!

RPMM

Item CodeTube Size(MM)
RPMM4*2.54 OD*2.5 ID
RPMM6*46 OD*4 ID
RPMM8*58 OD*5 ID
RPMM8*5.58 OD*5.5 ID
RPMM8*68 OD*6 ID
RPMM10*6.510 OD*6.5 ID
RPMM10*810 OD*8 ID
RPMM12*812 OD*8 ID

RPMM-INCH
Item CodeTube Size(Inch)
RPMM1/41/4
RPMM5/165/16
RPMM3/83/8
RPMM1/21/2

Push on Fittings

◎ FEATURES

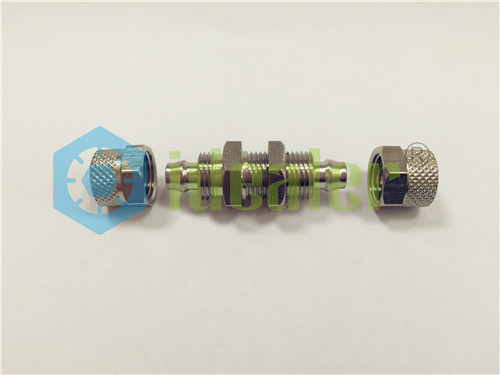

The so called “Rapid Fittings” “push on fittings”are designed with a nozzle whose shape guarantees the tubing perfect tightness simply by finger tightening the nut. The push on fitting range includes some swivelling fittings that after the assembling can freely swivel. The big advantage of this fitting line is that the connected tube is allowed a 360° rotation on the fixing axle. All Brass Rapid fittings and Push On Fittings can be both brass or nickel-plated color!

◎ SPECIFICATIONS


ApplicatoinsPneumatic circuits
Recommanded TubingsPA11, PA12, Polyethylene PE, Polyurethane PU
Working Pressure Rangemax. 15 Bar
Working Temperature Range-4 ℉~160℉-15℃~70℃
RemarksThe working pressures and working temperatures depend on which type of tube is used!

About Body Color: You can choose Brass color or Nickle plated..
About Logo: Standard No logo, OEM can be on request.
About Packing: you can choose Standard No Logo Packing, Idealer Logo Packing Or OEM packing.
