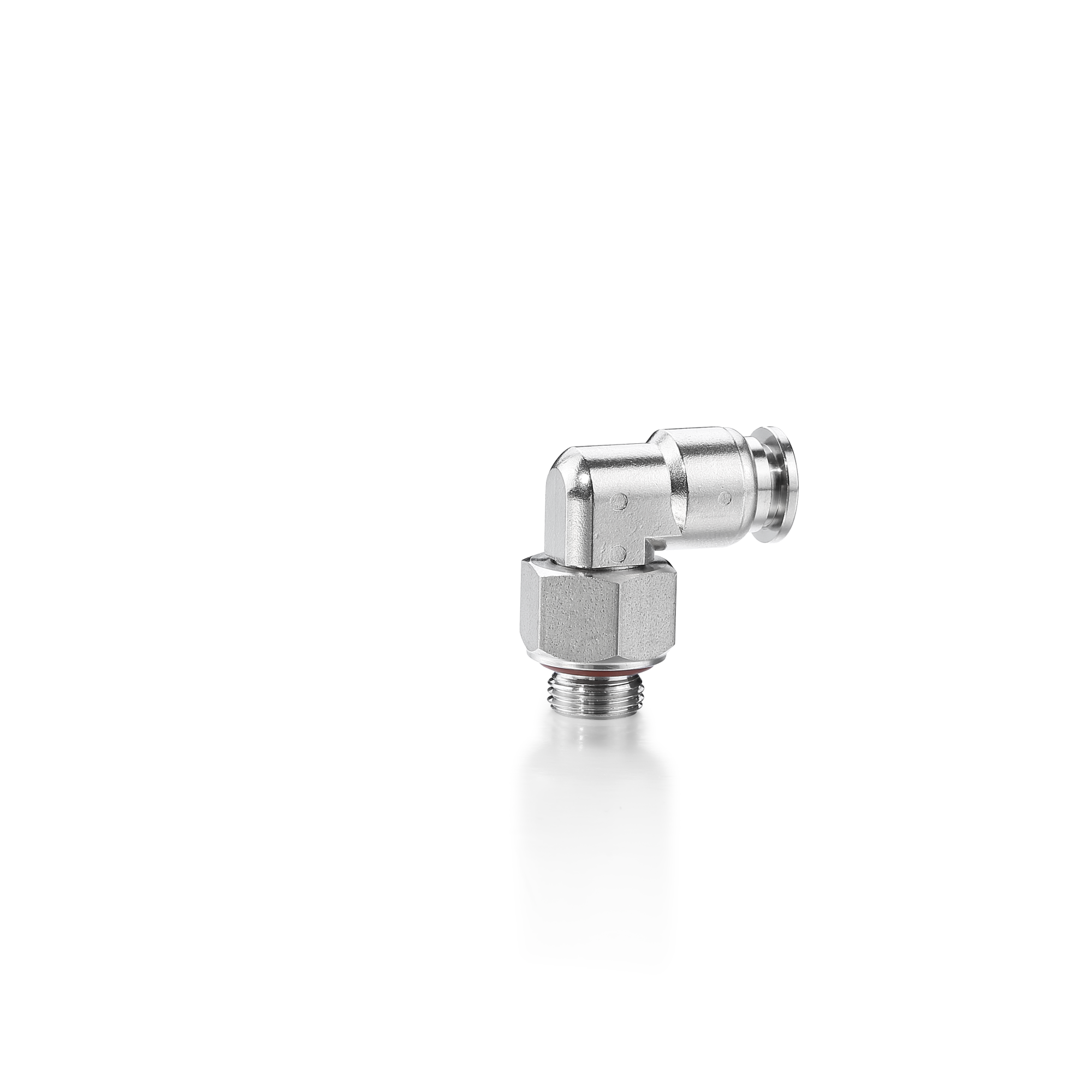

The SSPL is a 316 stainless steel 90-degree male elbow used to route tubing toward threaded ports in tight spaces.

Item CodeTube Size(MM)Thread
SSPL4-M54M5x8
SSPL4-M64M6x1.0
SSPL4-014R 1/8
SSPL4-024R 1/4
SSPL6-M56M5x8
SSPL6-M66M6x1.0
SSPL6-016R 1/8
SSPL6-026R 1/4
SSPL6-036R 3/8
SSPL6-046R 1/2
SSPL8-018R 1/8
SSPL8-028R 1/4
SSPL8-038R 3/8
SSPL8-048R 1/2
SSPL10-0110R 1/8
SSPL10-0210R 1/4
SSPL10-0310R 3/8
SSPL10-0410R 1/2
SSPL12-0112R 1/8
SSPL12-0212R 1/4
SSPL12-0312R 3/8
SSPL12-0412R 1/2
Item CodeTube Size(MM)Thread
SSPL5/32-U105/32U10-32
SSPL5/32-N015/32NPT 1/8
SSPL5/32-N025/32NPT 1/4
SSPL1/4-N011/4NPT 1/8
SSPL1/4-N021/4NPT 1/4
SSPL1/4-N031/4NPT 3/8
SSPL1/4-N041/4NPT 1/2
SSPL5/16-N015/16NPT 1/8
SSPL5/16-N025/16NPT 1/4
SSPL5/16-N035/16NPT 3/8
SSPL5/16-N045/16NPT 1/2
SSPL3/8-N013/8NPT 1/8
SSPL3/8-N023/8NPT 1/4
SSPL3/8-N033/8NPT 3/8
SSPL3/8-N043/8NPT 1/2
SSPL1/2-N011/2NPT 1/8
SSPL1/2-N021/2NPT 1/4
SSPL1/2-N031/2NPT 3/8
SSPL1/2-N041/2NPT 1/2

◎ FEATURES

  • 90-degree male thread–to–tube arrangement

  • Made from 316 stainless steel for long-term durability

  • Reliable push-to-connect sealing

  • Suitable for equipment with side or vertical threaded ports

  • Maintains flow efficiency in angled layouts

◎ APPLICATIONS

Ideal for connecting tubes to cylinders, regulators and manifolds in compact machinery.

◎ SPECIFICATIONS
Applicable Fluid TypeAir, Water,Vacuum
Working Pressure Range-14 ~150 PSI-0.99~ 10 Bar
Working Temperature Range5 ℉~428℉ -15℃~220℃
Vacuum Ratingto 750mmHg
Recommanded TubingsPA11, PA12, PA6, PE, PU,PTFE,FEP
ApplicationsPneumatics, Food Industry, Chemical, Medical and Pharmaceutical Industry
About Body Color: You can choose Brass color or Nickle plated..
About Logo: Standard No logo, OEM can be on request.
About Packing: you can choose Standard No Logo Packing, Idealer Logo Packing Or OEM packing.
